felix-metro

felix-metro is a city simulator that runs in the browser in 3D. Residents commute, shop and go home over a day that takes 24 minutes. Everything that happens is written to Felix, so you can drag the timeline back to any moment the log still holds, see the city exactly as it was, and let it play forward until it catches up with live.

It is in design. The style frame fixes the look, and nothing is simulated yet. The sections below describe the design.

Day Night

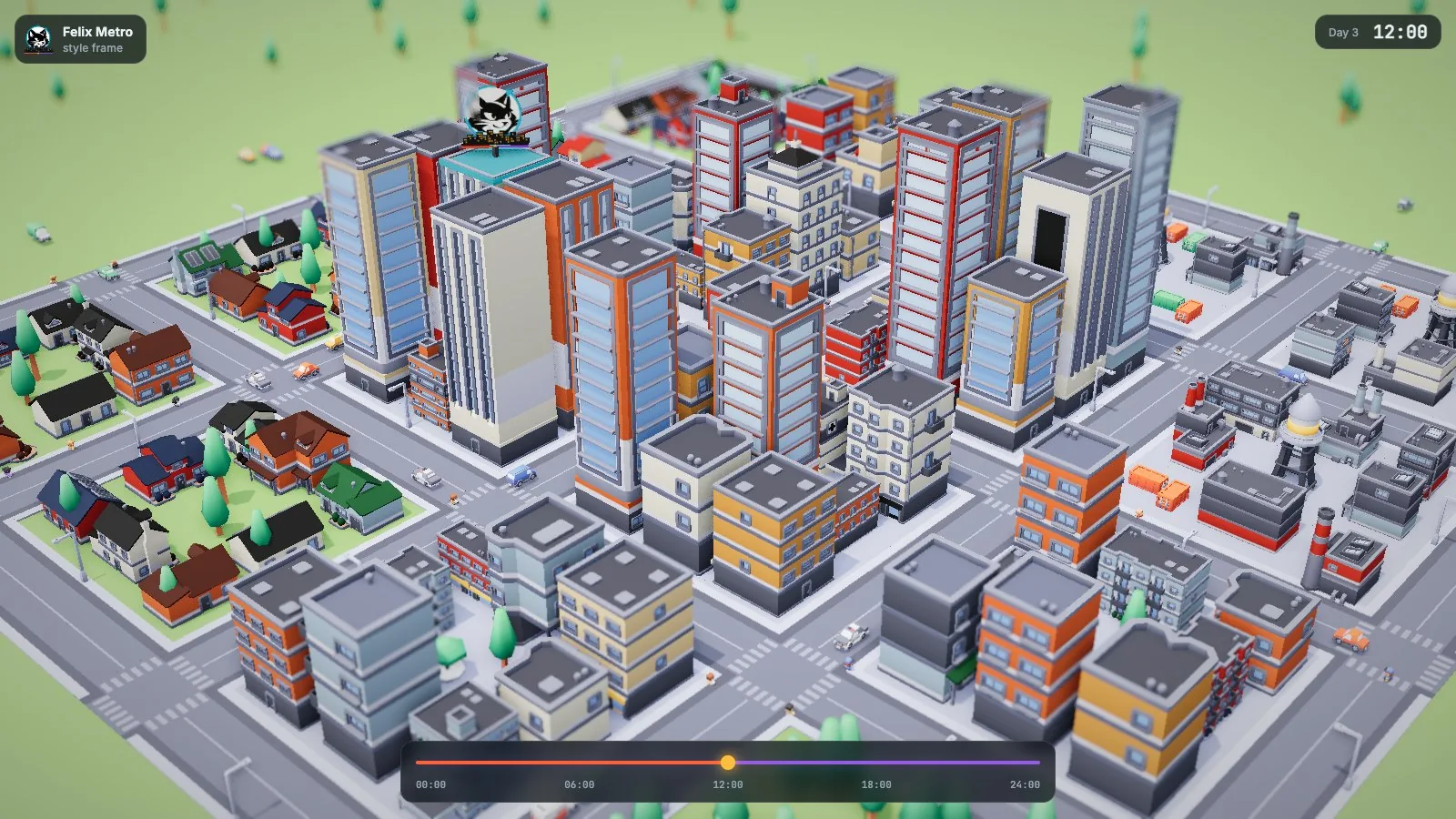

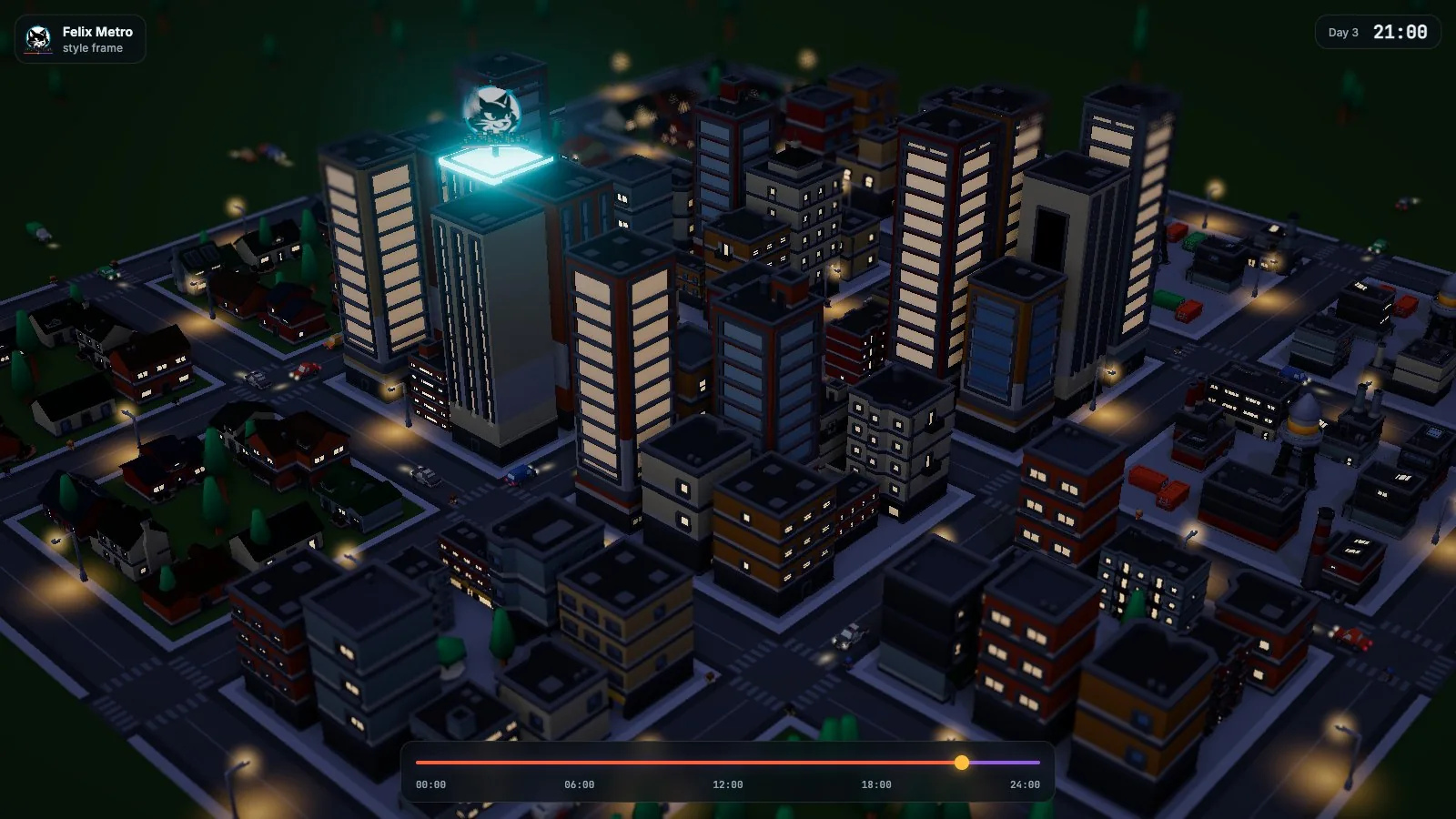

felix-metro style frame at noon: suburbs, downtown towers and an industrial district on a road grid, seen from above through a tilt-shift lens The same city at night, with lit windows, street lights and the Felix tower’s cyan crown

How it uses Felix

Section titled “How it uses Felix”

A city is a grid of districts. Its resources are created once, when the city is:

Resource Kind What it holds
metro.events.<city> Durable stream, one shard per district One record per district per simulation tick, with that tick’s events
keyframe Stream state key on each district’s shard The offset of the district’s latest keyframe
metro.commands.<city> Durable stream with the gateway’s sender stamp Builders’ commands: place a road, zone a lot, demolish

One simulator per city is the authority. It steps every district together, four ticks a second at normal speed, each tick 15 seconds of city time. Each tick it writes one record per district as an atomic commit, routed by the district so each district’s history stays in order on its own shard. It waits for every answer before the next tick, and it commits at an expected offset, so a stale simulator that comes back after a replacement is refused by the broker instead of writing a second history.

The log holds decisions, not positions. A tick record says that a resident left home on a route at some speed, arrived somewhere, or that a building went up. The browser moves each car along its route itself. That keeps a city of 20,000 residents at about 10 KB/s of log, so a week of history fits on one broker.

Every city hour each district also commits a keyframe, its whole state, and the same commit writes the keyframe state key, so the pointer and the keyframe can never disagree. Every tick record carries the offset of its district’s latest keyframe.

Going back to a moment is, for each district:

  1. Find the tick record for that moment. There is one record per tick, so the client estimates the offset and corrects it with one read.
  2. Read the keyframe that record points to.
  3. Read the range from the keyframe to the moment and apply the events.

Playing forward is a subscription from the next offset. Felix joins stored history to live delivery with no gap, so the city catches up with live without the client doing anything special.

flowchart LR
  B["Browser"] -- "WebSocket" --> G["felix-gateway"]
  G -- "commands" --> CMD[("metro.commands<br/>durable")]
  CMD --> SIM["Simulator, 4 Hz"]
  SIM -- "atomic commit per district per tick" --> EV[("metro.events<br/>one shard per district")]
  EV -- "range reads to go back, subscribe to play forward" --> G

Browsers reach Felix through felix-gateway, which already offers read and state_get. Seeking by time would be one lookup per district if the gateway exposed offset_for_time; that is on the project’s list for felix-gateway.

What it demonstrates

Section titled “What it demonstrates”
  • History as the product. The timeline is a range read and a subscription, not a second datastore of snapshots.
  • Seeking that stays fast. A keyframe every city hour bounds a seek to one keyframe and an hour of events per district.
  • Rewind, then follow live with no gap, across many shards at once.
  • One writer per city, fenced at the broker by expected-offset commits.
  • Forks from the past. A branch timeline starts from a keyframe of the parent and owes it nothing after that.
