felix-arena

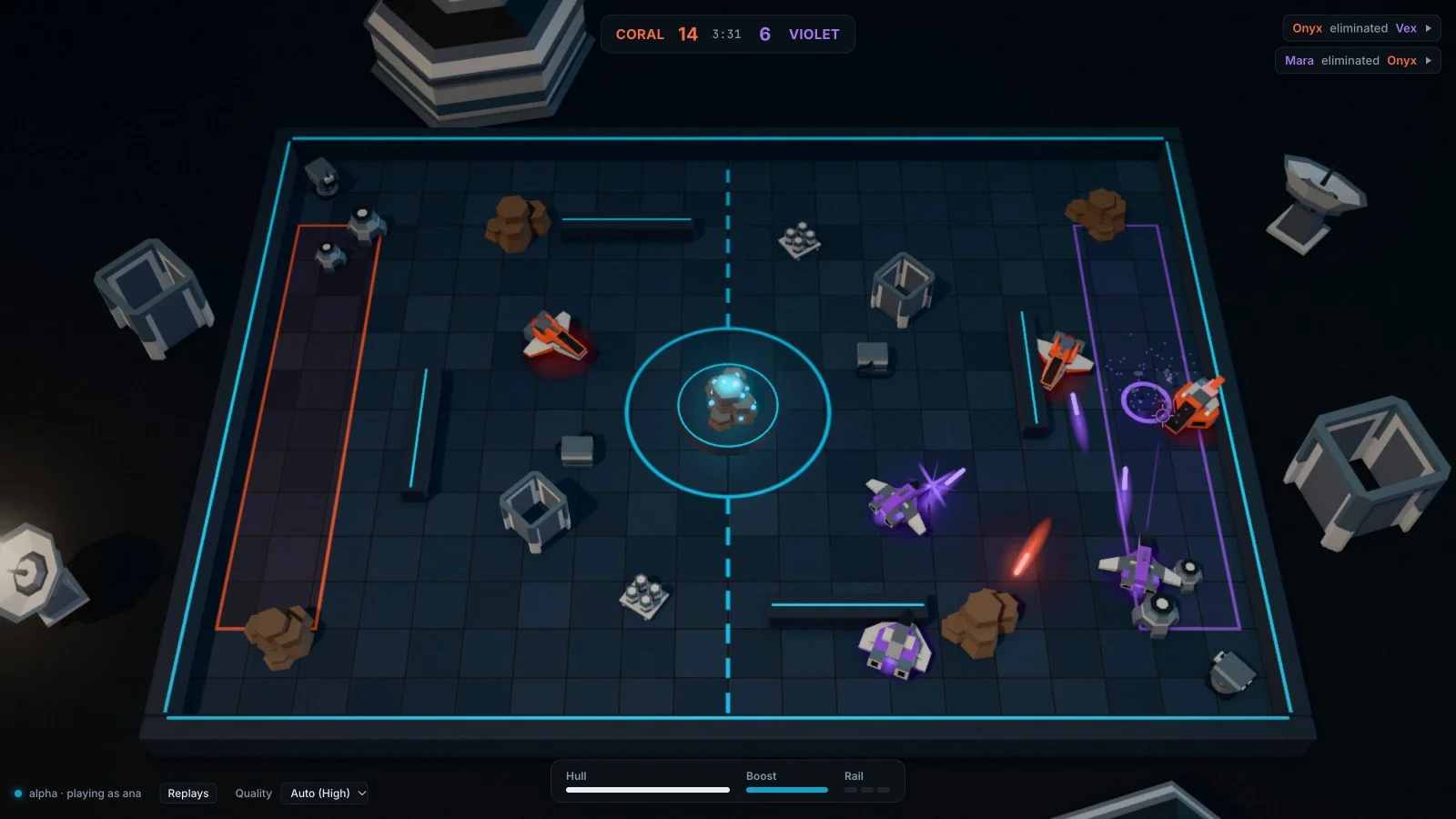

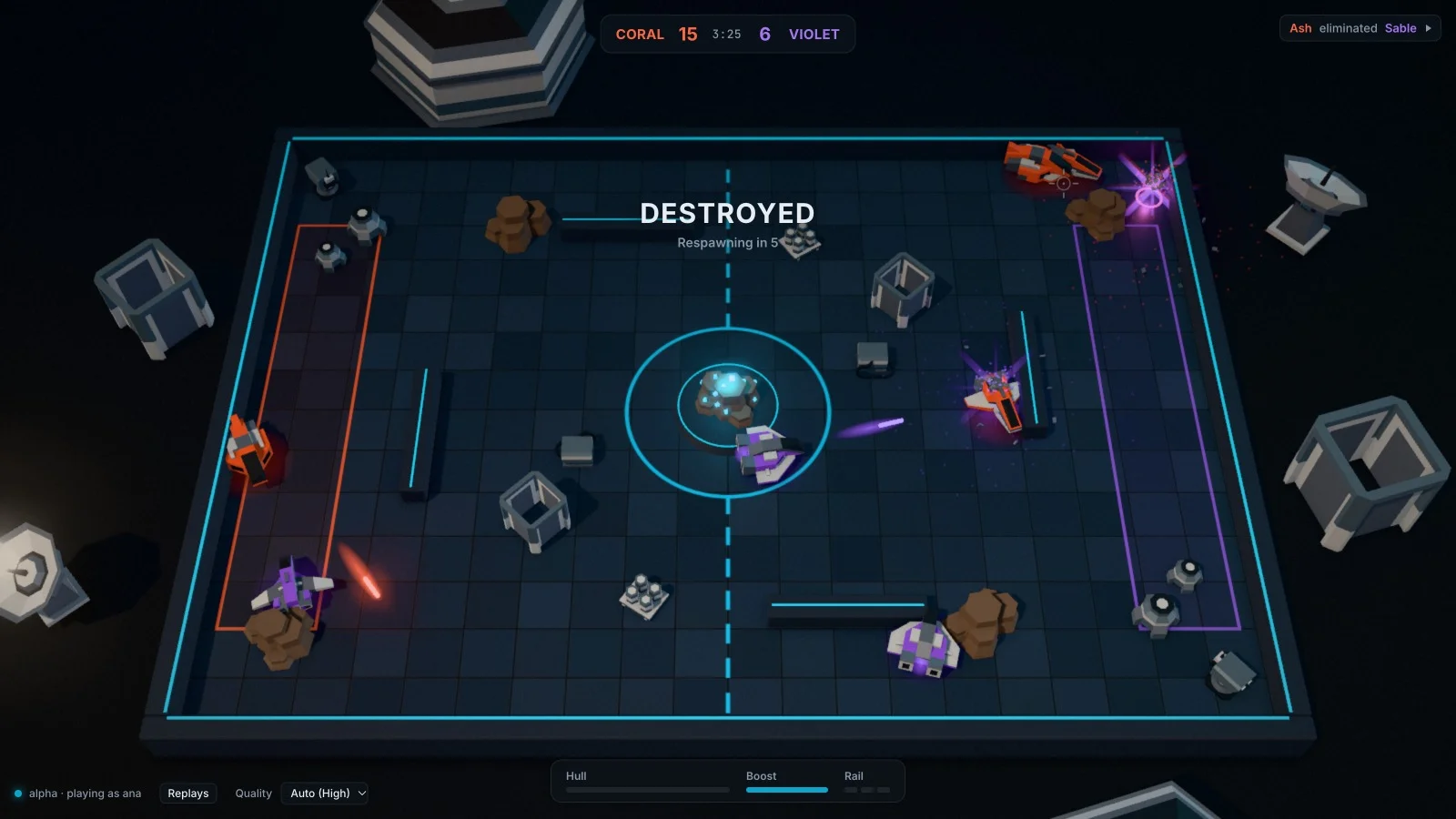

felix-arena is a team deathmatch for up to eight players flying hover-craft in a walled arena, played in the browser and self-hosted. When a player dies, the last few seconds replay from the match’s Felix log, and spectators can join a match in progress.

It is playable. A match runs through Felix from warmup to results: the simulator commits every tick, writes the keyframe key, and applies inputs from the input stream, and browsers reach it through felix-gateway. Players and spectators join a match in progress from the keyframe key, and the kill cam replays kills from the log. The member and lobby caches, the epoch counter, three-replica Quorum streams and per-arena token narrowing are designed but not built yet; the development stack runs one broker with a stand-in identity provider. The sections below describe the full design and say which parts run today.

How it uses Felix

An arena is a persistent room that runs match after match. Its resources are created once, at deployment:

Resource	Kind	What it holds
arena.ticks.<arena>	Durable stream, one shard, Quorum, three replicas	The match: one record per simulation tick, 30 a second
keyframe, match/<n>	Stream state keys on the tick stream	The latest keyframe tick and each match’s first offset
arena.input.<arena>	In-memory stream	Player inputs
arena.members.<arena>, arena.lobby	Caches with a TTL	Who is connected, and every arena’s status
arena.epoch.<arena>	Counter	The simulation’s epoch, so readers can ignore a stale simulator

One simulator per arena is the authority. It writes each tick as an atomic commit and waits for the answer before the next, so ticks land in order and the simulator learns each tick’s offset from the commit’s answer. Every 30th tick is a keyframe holding the whole match state, and the same commit updates the keyframe state key, so the keyframe and the pointer to it can never disagree. On a Quorum stream, a state read never reflects a commit that a failover could take back.

Joining mid-match is a read of the keyframe key, whose version is the keyframe’s offset, followed by a subscription from that offset. The keyframe is in the log, so the subscription continues into live ticks without a gap.

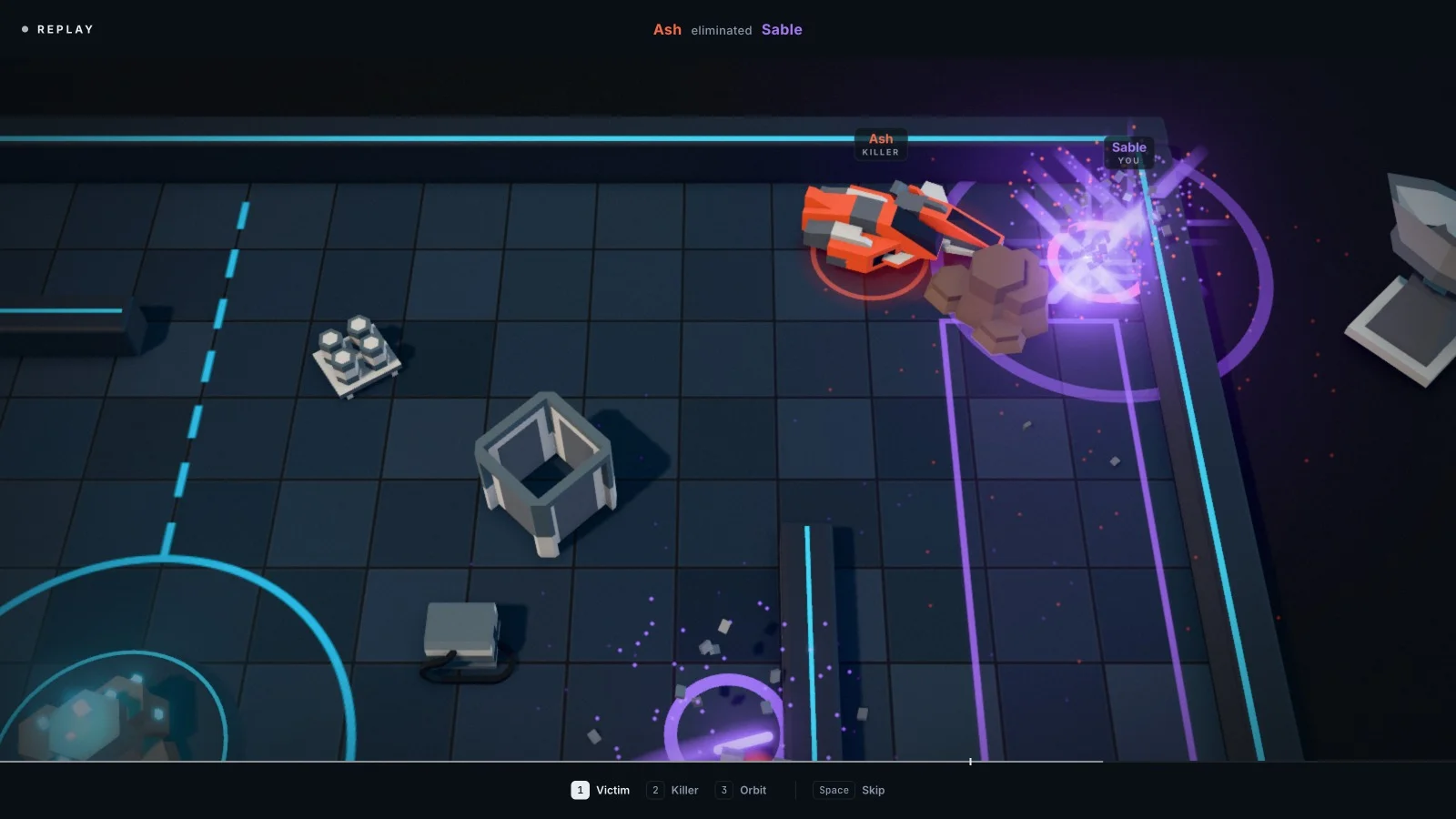

The kill cam is the same stream read from an earlier offset. A kill event names replay_from, the offset of the tick three seconds before it, which the simulator knows from its commit answers. The victim’s client fetches that slice of the stream with a range read and plays the ticks back through the same renderer with a different camera, while its live subscription keeps running. Recent records come from the broker’s in-memory replay ring, so a kill cam does not read from disk. Any kill in the feed can be replayed the same way, from this match or an earlier one, until retention trims the records.

Inputs go on an in-memory stream because an input 40 ms old is worthless and the next one replaces it. Each input repeats the previous two, so a dropped record is almost always covered by the next.

Browsers reach Felix through felix-gateway 0.6.0 or later, using three opt-in features: binary event frames, state_get for the keyframe key, and read for the kill cam’s range reads. The gateway stamps each input with the session’s principal, and the simulator accepts an input only when that stamp matches the publisher the broker recorded on the event. In the design, each session’s token is narrowed to one arena, with RBAC roles for who may play and who may only watch.

flowchart LR
  B["Browser"] -- "WebSocket" --> G["felix-gateway"]
  G -- "inputs" --> IN[("arena.input<br/>in-memory")]
  IN --> SIM["Simulator, 30 Hz"]
  SIM -- "atomic commit per tick" --> T[("arena.ticks<br/>durable, Quorum")]
  T -- "live, and range reads for the kill cam" --> G

Quick start

Each release carries the built web client. Serve it and play against bots in the page, with no servers:

gh release download -R GetFelix/felix-arena -p 'felix-arena-web-*'
tar -xzf felix-arena-web-*.tar.gz && cd felix-arena-web-*/
python3 -m http.server 5173
# open http://localhost:5173/play.html?offline

To play through Felix, start the development stack from a clone with dev/up.sh (Docker or Podman), then open play.html?arena=alpha&as=ana and, in a second window, as=ben.

More

• README
• Design, including the kill cam, failure modes, the build order and what the game would surface in Felix
• Art direction
